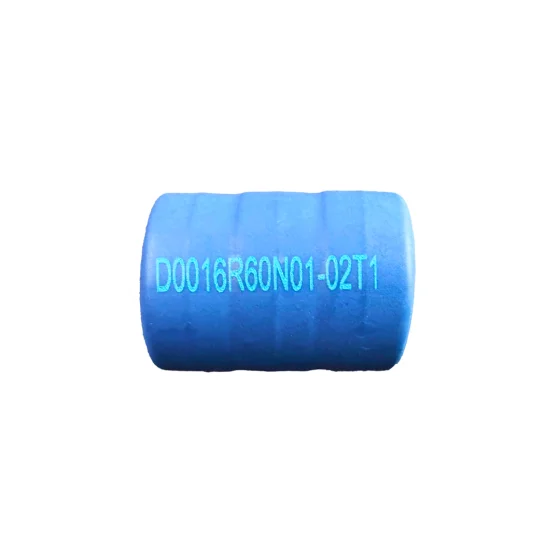

D0016R60N01-02
SKU
D0016R60N01-02
Datasheet
Description
Specification
If you need any information, please find your local distributor on the map below or on our contact page here.
- This custom core has a permeability of 60000.
- Core dimensions are: Outer dimension 16 mm, inner dimension 10 mm and the height is 18 mm.
- Case dimensions are: Outer dimension 35 mm, Inner dimension 17 mm and height is 125 mm.
- Case dimensions are: Outer dimension 18,9 mm, inner dimension 8 mm and the height is 25,9 mm.
- Isat = tbd
- There are tbd pcs. in a box
- Weight: One pc. is 16 grams.
| Outer diameter OD (mm) | 18.9 |
|---|---|
| Inner diameter ID (mm) | 8 |
| Height mm | 25.9 |
| Permeability | 60000 |
