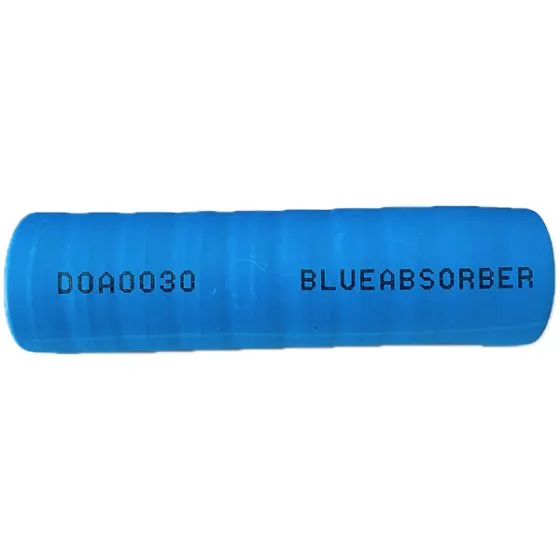

This Blueabsorber has a permeability of 12000.
Core dimensions are: Outer dimension 30 mm, inner dimension 20 mm and the height is 100 mm.
Case dimensions are: Outer dimension 35 mm, Inner dimension 17 mm and height is 125 mm.
Isat = 5.2 A
There are 48 pcs. in a box
Weight: One pc. is 300 grams.

*Disclaimer: Values are nominal and are subject to change.
